9501

Finishes available: PC, BRN

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box

Materials: Steel

Keyways available: Yale, cross key

Classifications: Standard security rimlock

graphic of dimension

Installation Instructions

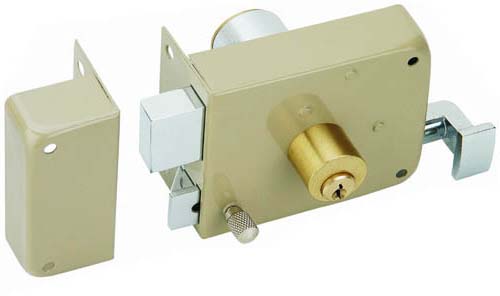

* A standard double cylinder rimlock for exterior wood and metal door.
* 1/2"(13mm) bevel latch controlled by handpull, which can lock latch at
retracted or extended position.
* 2-throw brass deadbolt of 7/8"(22mm) extension operated by key from both cylinders.
* Lock case in steel painted in prime coat or other colors.
* 2-3/8"(60mm) backset.
* Reversible for left or right hand doors.
* Yale keyway as standard, other keyways optional.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
