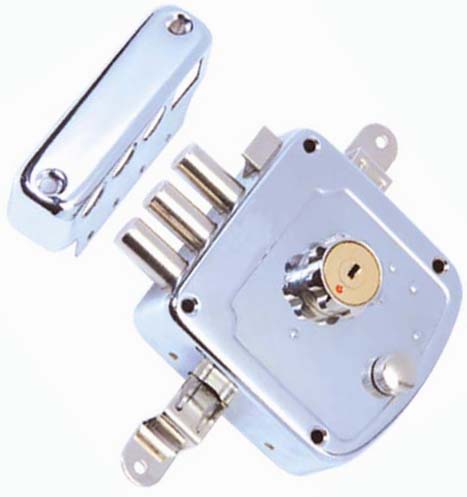

9228CP

9228

Finishes available: CP

Specifications: 65mm backset

Functions available: Double cylinder, multi-point

Packagings available: Box

Materials: Steel

Keyways available: Yale, Cross keys, E-type key, Dimple key, Combo key

Classifications: High security rimlock

graphic of dimension

Installation Instructions

* A high security rimlock with multipoint functions.
* Three points horizontal, two vertical.
* 3 throw triple cylindrical latches of 1-5/16"(33mm) extension.
* 1/2"(13mm) brass bevel latch, controlled by supplementary turn button at retracted or extended position.
* Two zinc die cast key window frames supplied.
* 2-9/16"(65mm) backset.
* Handing reversible.
* Door thickness ranges from 1-3/16" to 2" (30mm to 50mm).
* High security cylinder including cross key, dimple key, combo key and E type key.
