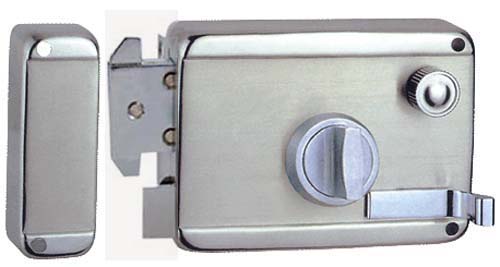

9683T-SS
9683T
Finishes available: SS
Specifications: 60mm backset
Functions available: Single cylinder
Packagings available: Box
Materials: Stainless steel
Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser, dimple
Classifications: Standard security rimlock





graphic of dimension
Installation Instructions

Product
* A high security rimlock for exterior wood and metal door, specially useful for sliding doors.
* Claw bolt latch enhances security.
* Lock case in stainless steel as standard. Other materials such as brass or steel optional.
* Turn button locks bevel latch in retracted or extended position, independent from key operations.
* Solid brass bevel latch of 1/2"(12mm) extension, activated by key outside and inner slide button.
* Twin cylindrical deadbolts in steel, 7/8"(20mm) extension, activated by key outside or inner thumbturn inside.
* Advisable to specify handing, but any lock can still be applied to different handing.
* Solid brass cylinder with dimple, Kaba, Cross, and other hi-security keyways.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
