5003
5003
Finishes available: Stainless Steel
Specifications:
Functions available:
Packagings available: Box
Materials: Stainless Steel
Keyways available:
Classifications: Tubular Leverset





graphic of dimension
Installation Instructions

Product

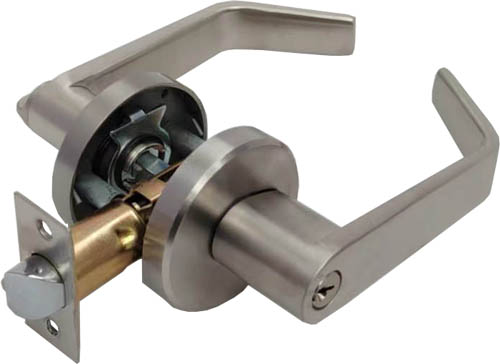

* A tubular leverset easy to install, particularly adaptable for residential use.
* Guaranteed for 200,000 life cycles.
* Exposed trim of stainless steel material.
* 5-pin tumbler cylinder, brass plug with 3 nickel plated brass keys.
* 2-3/4"(70mm) strike as standard.
* Door thickness ranges from 1-3/8" to 2-3/16"(35mm to 55mm).
* Backset adjustable between 2-3/8" and 2-3/4"(60 and 70mm).
* Handing reversible for right and left hand doors.
* 5-pin tumbler cylinder, brass plug with 3 nickel plated brass keys.
* 1/2"(12mm) throw latch.
* 2-3/4"(70mm) strike as standard.
* Door thickness ranges from 1-3/8" to 2-3/16"(35mm to 55mm).
* Handing reversible for right and left hand doors.
* Functions available in Entrance, Privacy, Passage.
* Dimple key is available.
